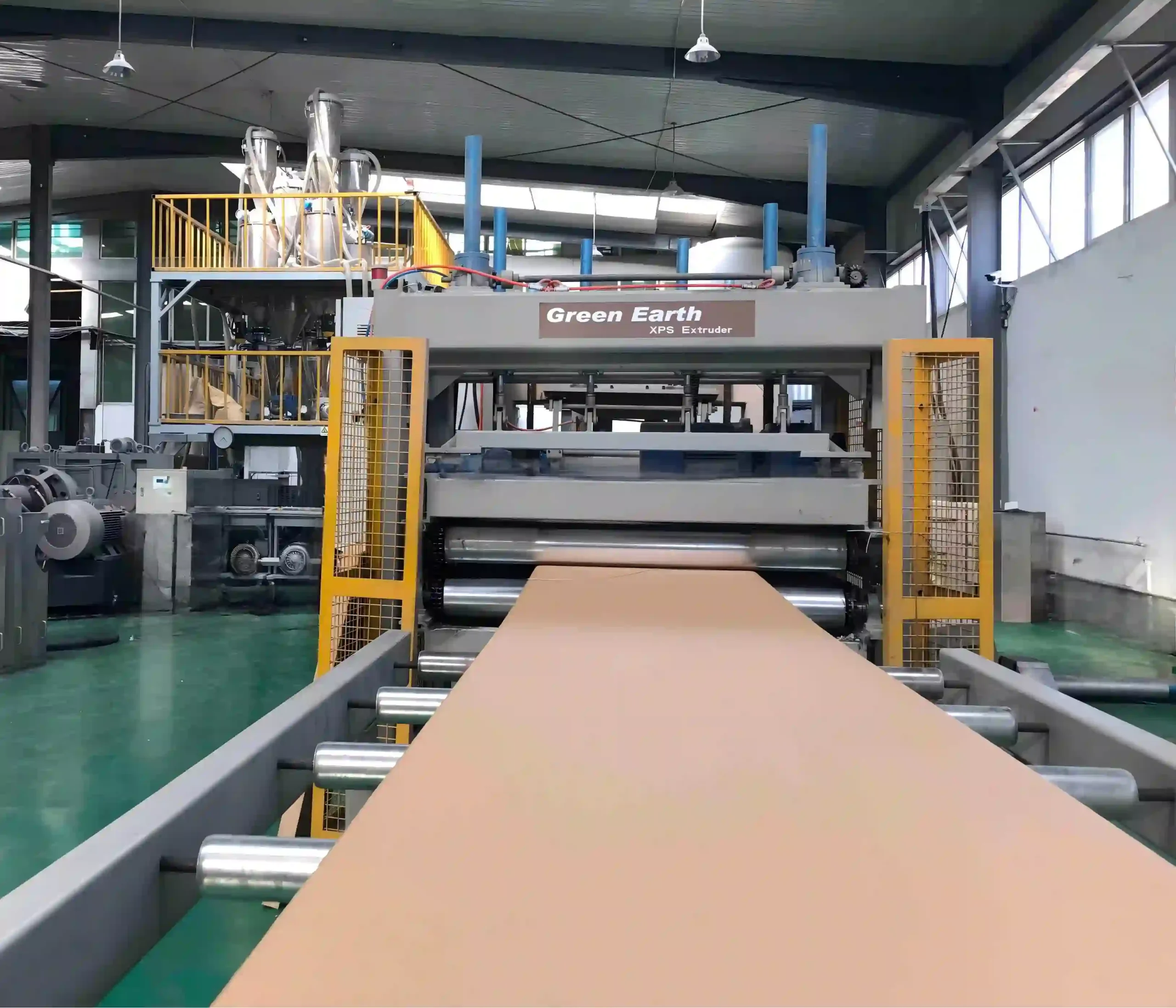

Supercritical CO₂ Foaming XPS Production Line

Supercritical CO₂ Foaming XPS Production Line
High‑Efficiency Extrusion System
Production Capacity: 700–2,400 kg/h
Intelligent Automatic Control
Turnkey Solutions for XPS Manufacturing

Product Detail

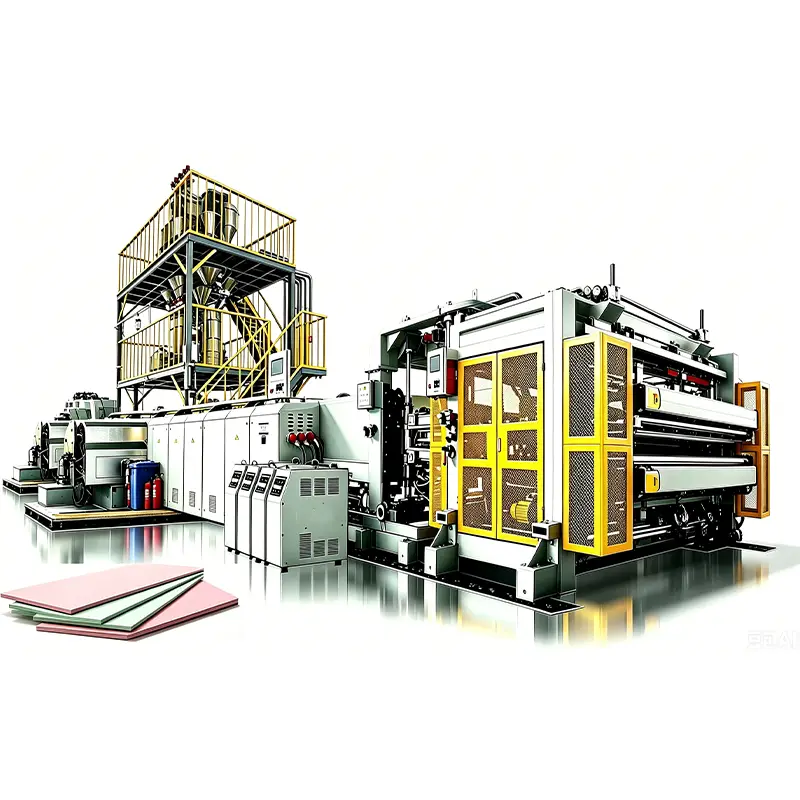

XPS Extrusion Equipment for XPS Foam Board Production

GreenEarth supplies advanced XPS extrusion equipment for manufacturing high‑performance extruded polystyrene (XPS) foam boards with controllable density, fine cell structure and high compressive strength. Our production system integrates raw‑material conveying, high‑torque twin‑screw extrusion, CO₂ foaming, cooling extrusion, board forming, cutting and finishing processes to deliver a complete manufacturing solution.

GreenEarth boasts project experience dating back to 2008 and has delivered more than 200 XPS production lines worldwide. We provide equipment configuration, process optimization, installation, training and after‑sales technical support for manufacturers, thermal‑insulation material producers and industrial investors.

XPS Extrusion Equipment Models and Output Capacity

GreenEarth offers a wide range of equipment configurations to meet diverse production requirements. The suitable model can be selected according to target output, board specifications, product density and plant‑site demands.

Models	Output Capacity
GE75-200	700kg/h
GE95-250	900kg/h
GE110-300	1300kg/h
GE135-400	2,000 kg/h
GE150-500	2400kg/h

Equipment configurations can be customized according to the required output capacity and XPS board specifications. GreenEarth can also supply complete XPS board production lines covering extrusion, cooling, cutting, milling, stacking, packaging and recycling.

Advanced Technologies for XPS Foam Board Production

Automatic Proportioning & Feeding System

A stable supply of raw materials is critical to guaranteeing XPS board quality. GreenEarth adopts automatic proportioning and loss‑in‑weight feeding technology to achieve precise and continuous raw‑material metering.

The digital formula management system allows adjustments to production parameters. The integrated vacuum conveying system can be configured to match plant layout and material‑circulation requirements, helping maintain an orderly and clean production environment.

High‑Torque Twin‑Screw Extruder

The twin‑screw extrusion system delivers efficient material mixing, plasticization and dispersion before foaming. GreenEarth’s high‑torque reducer reaches a specific torque coefficient of up to 10.3 N·m/cm³, compared with approximately 4.9 N·m/cm³ for conventional systems.

Higher torque capacity helps lower material temperature inside the barrel, enables efficient additive dispersion and ensures stable processing of high‑performance XPS formulations.

Fully CNC‑machined barrel and screw elements ensure precise fitting between the screw and barrel, resulting in consistent material dispersion and controlled residence time.

High‑Efficiency Cooling Single‑Screw Extruder

Accurate temperature control is essential during XPS foaming and forming. GreenEarth‑cooled single‑screw extruders adopt an optimized cooling barrel and screw structure to improve heat transfer and melt‑temperature regulation.

The latest cooling structure provides up to 80% higher cooling efficiency than conventional designs, while the optimized secondary extrusion system can reduce energy consumption by approximately 30%.

Active melt sealing technology also helps prevent material leakage and reduces the need for frequent packing replacement.

CO₂ Foaming Agent Injection System

CO₂ foaming requires accurate control of temperature, pressure and injection volume because the physical properties of CO₂ change significantly under different processing conditions.

GreenEarth's foaming agent injection system coordinates CO₂ temperature, pressure and mass flow to maintain stable foaming conditions. A multi-agent injection configuration can also support different product grades and production requirements.

This technology enables manufacturers to produce XPS boards with fine cellular structures while reducing dependence on conventional fluorinated blowing agents.

DCS Intelligent Control System

The intelligent DCS control system integrates production data, formulation records, operating parameters and equipment alarms into a centralized platform.

Operators can manage production formulas, monitor operating conditions and review historical data through the control system. Maintenance reminders generated from alarm and service records can also support equipment maintenance and troubleshooting.

Remote technical diagnosis can further improve after-sales support and reduce downtime during production.

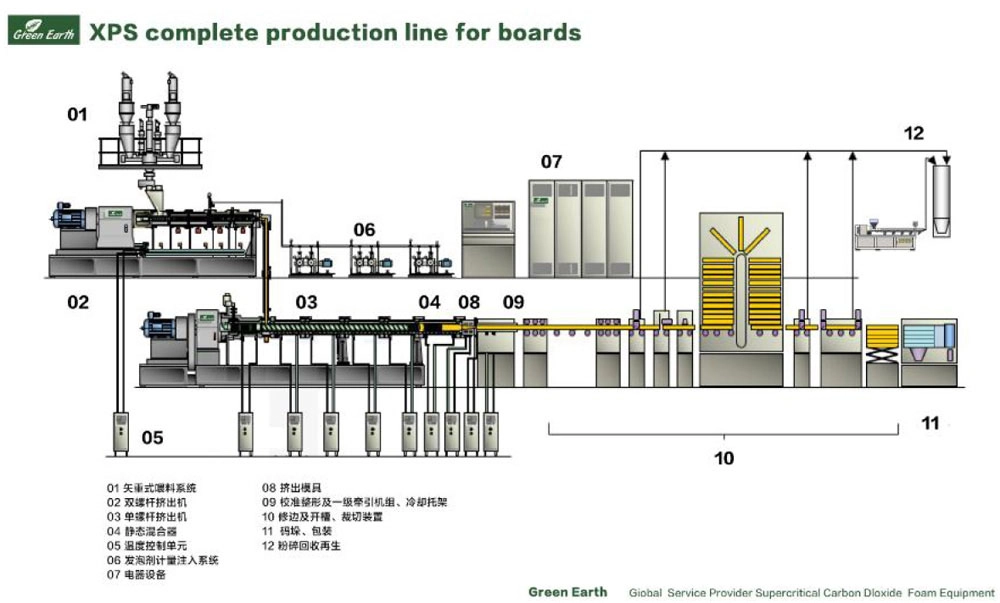

Complete XPS Production Equipment

A complete XPS manufacturing system requires more than the primary extrusion units. GreenEarth integrates auxiliary equipment into the production line to create a coordinated manufacturing process.

The complete equipment configuration can include:

Automatic vacuum raw material conveying
Loss-in-weight and gain-in-weight feeding systems
Twin-screw extrusion system
Cooling single-screw extruder
CO₂ foaming injection system
Edge trimming and grooving equipment
Double-blade and triple-blade cross cutting
Cooling turnover racks
Four-side precision milling
Automatic stacking
Automatic packaging
Online recycling pelletizing
Central dust removal
Laboratory testing equipment

These systems can be configured according to production capacity, board dimensions, factory layout and automation requirements.

For projects involving multiple types of polymer processing, GreenEarth also provides industrial polymer production equipment for different extrusion and processing applications.

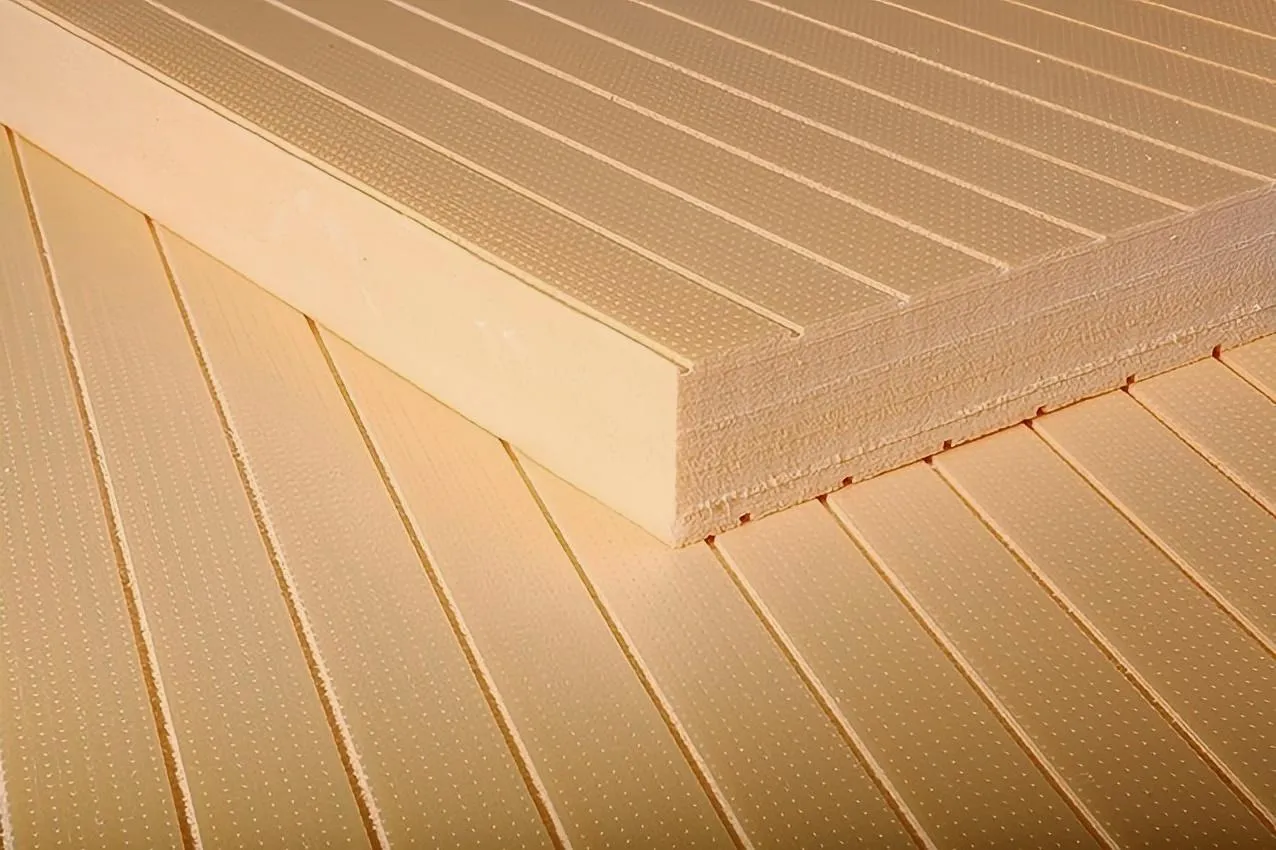

XPS Foam Board Manufacturing Applications

XPS boards produced with GreenEarth equipment are widely used where thermal insulation, moisture resistance and compressive strength are required.

Thermal Insulation

XPS foam boards provide low thermal conductivity and moisture resistance for insulation applications, including:

Building insulation
Floor insulation
Pipeline insulation
High-speed railway ballastless track systems

High-Load Applications

The fine-cell structure and high compressive strength of XPS boards make them suitable for applications involving continuous mechanical loads.

Typical applications include:

Airport runway and road subgrades
Insulation beneath concrete floors
Infrastructure protection
Safety barrier structures

Specialty Applications

XPS materials can also be processed into products for emerging and specialized applications, including:

Flotation systems
Composite sandwich panels
Decorative panels
Lightweight structural components

Turnkey XPS Production Line Solutions

GreenEarth provides technical support throughout the complete project lifecycle. Our services cover equipment configuration, production planning and technical implementation rather than supplying individual machines alone.

Plant Layout and Equipment Planning

We evaluate production capacity, material flow, equipment dimensions and auxiliary systems to support an efficient factory layout.

Production Formula and Process Support

Technical specialists can assist with formulation optimization and process parameter adjustment based on product specifications and production targets.

Installation and Operator Training

GreenEarth provides installation guidance, commissioning support and operator training to help production teams understand equipment operation, process control and routine maintenance.

Spare Parts and After-Sales Support

Key spare parts are maintained for common equipment configurations to support timely replacement. Technical engineers can also assist with equipment diagnosis, process optimization and production troubleshooting.

Why Choose GreenEarth XPS Extrusion Equipment

More Than 200 Production Lines Delivered

Since 2008, GreenEarth has supplied more than 200 XPS production lines to customers across international markets.

CO₂ Foaming Technology

GreenEarth has focused on CO₂-based XPS foaming technology since 2008, developing equipment and process solutions for stable supercritical fluid extrusion foaming.

High Production Capacity

The available equipment range covers output from 700 kg/h to 2,400 kg/h, allowing manufacturers to select a configuration according to their production requirements.

Integrated Production Solutions

From feeding and extrusion to cutting, milling, stacking, packaging and recycling, GreenEarth can integrate the major equipment required for a complete XPS manufacturing process.

Technical Support

Professional engineers provide equipment configuration advice, process support, troubleshooting and maintenance assistance throughout the project lifecycle.

GreenEarth combines XPS extrusion technology with broader polymer processing capabilities as a professional Polymer processing equipment manufacturer, providing integrated equipment solutions for industrial polymer processing applications.

XPS Extrusion Equipment FAQ

What is XPS extrusion equipment?

XPS extrusion equipment is a production system used to manufacture extruded polystyrene foam boards through processes including feeding, extrusion, foaming, cooling and board forming. A complete system can also include cutting, milling, stacking, packaging and recycling units.

What is the output capacity of GreenEarth XPS equipment?

GreenEarth currently provides a variety of equipment configurations with output capacities ranging from 700 kg/h to 2400 kg/h. The suitable configuration depends on the required production output, board specifications and production process.

Can this equipment use carbon dioxide as a foaming agent?

Yes. GreenEarth develops XPS extrusion systems based on CO₂ foaming technology, which are equipped with dedicated injection and process‑control systems to manage the temperature, pressure and flow rate of carbon dioxide.

What is an XPS foam board forming machine used for?

An XPS foam board production machine is used to manufacture rigid extruded polystyrene thermal‑insulation boards. Finished boards are widely applied in building thermal insulation, floor projects, infrastructure construction and other fields requiring heat insulation and compressive strength.

Can GreenEarth supply a complete production line?

Yes. GreenEarth can integrate extrusion equipment with feeding, cooling, cutting, milling, stacking, packaging, recycling and other auxiliary systems to deliver a full‑scale XPS production solution.

How to select suitable XPS production equipment?

The main influencing factors include required output, board thickness and width, target density, product performance, foaming technology, plant layout and automation requirements. GreenEarth can recommend proper equipment configurations according to these production parameters.

Request Your XPS Extrusion Equipment Solution

Looking for XPS board‑making machinery or a complete XPS production system? Please contact GreenEarth and inform us of your target output capacity, board specifications and production requirements.

Our technical team will recommend suitable equipment configurations and deliver a full‑fledged solution covering extrusion, downstream processing, automation and project‑wide support.
