Recycled Polystyrene Resin
Product Overview
Recycled PS pellets are high-quality recycled polystyrene raw materials produced from waste PS foam, XPS insulation board scraps, and other post-industrial or post-consumer PS products. Through controlled sorting, cleaning, drying, extrusion, devolatilization, filtration, and pelletizing, Green Earth converts PS waste into consistent recycled resin for downstream plastic processing.
The recycled material is designed for manufacturers seeking a more cost-effective alternative or blending component to virgin GPPS resin. Depending on the feedstock and processing requirements, recycled PS can provide stable melt flow, good processing compatibility, and consistent pellet quality for XPS boards, injection-molded components, packaging materials, and other PS-based products.
For manufacturers handling different types of polymer materials, our range of polymer processing equipment provides integrated solutions for recycling, extrusion, compounding, and pelletizing applications.
Recycling Production Flow
The production process is designed to remove contaminants and volatile components while maintaining the processing characteristics of recycled PS.
1. Waste PS Sorting & Compacting
Waste PS foam, XPS scraps, and other polystyrene materials are sorted to remove paper, metals, incompatible plastics, and other contaminants. Lightweight foam materials are then compacted into higher-density blocks, improving material handling, storage, and feeding efficiency.
2. Cleaning & Impurity Removal
The compacted materials are crushed into manageable fragments and processed through cleaning equipment. Multiple cleaning stages remove dust, surface contamination, residual adhesives, and other impurities from the PS feedstock.
3. Dehydration & Deep Drying
After cleaning, the PS fragments undergo centrifugal dehydration followed by hot-air drying. Moisture control is essential for stable extrusion and pellet quality, particularly when processing contaminated or moisture-sensitive waste streams.
4. Melting Extrusion & Devolatilization
The dried PS material enters the extrusion system, where controlled heating and screw shearing gradually melt and homogenize the polymer. A multi-stage vacuum devolatilization system removes residual blowing agents, moisture, and other volatile components from the polymer melt.
5. Filtration & Pelletizing
The molten polymer passes through a high-precision filtration system to remove fine contaminants and unmelted particles. Depending on the material characteristics and required pellet specifications, the melt can be processed through underwater or strand pelletizing.
6. Cooling, Screening & Packaging

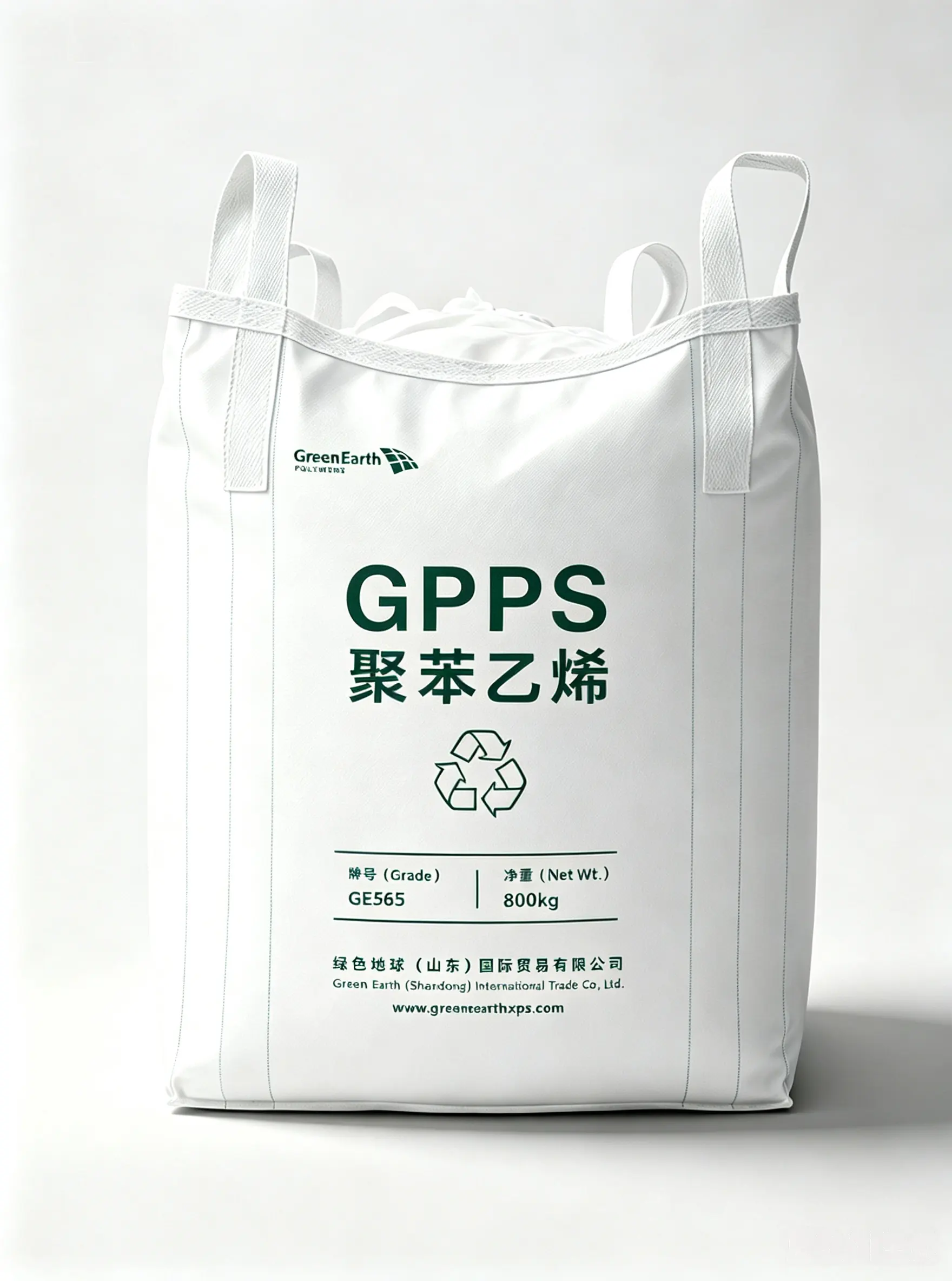

Freshly formed pellets are cooled and solidified before dehydration and screening. The finished material is classified according to particle size and quality requirements, then packed in standard bags or bulk packaging for transportation and downstream processing.
Product Advantages
Cost-Effective Alternative to Virgin PS
Recycled PS pellets can reduce dependence on virgin polystyrene resin and help manufacturers optimize raw material costs. The actual cost advantage depends on feedstock quality, recycled content, grade requirements, and market conditions.
Stable Processing Performance
Controlled sorting, cleaning, extrusion, and devolatilization help produce recycled material with consistent melt flow and reduced contamination. This supports stable feeding and processing in downstream extrusion and injection molding operations.
Compatibility with Virgin GPPS
Recycled PS can be blended with virgin GPPS at an appropriate ratio according to the target application and required performance. This provides manufacturers with greater flexibility when balancing material cost, recycled content, and finished-product properties.
For applications requiring new polymer materials, our transparent polystyrene resin portfolio can also be considered alongside recycled grades.
Improved Resource Utilization
Recycling PS waste converts discarded foam, XPS production scraps, and other polystyrene waste streams into reusable polymer feedstock. This supports material recovery strategies and helps reduce the amount of PS waste requiring disposal.
Controlled Pellet Quality
Multi-stage filtration, devolatilization, screening, and quality inspection help control impurity levels, moisture content, pellet size, and melt flow characteristics.
Customizable Recycled Grades
Recycled PS pellets can be produced according to feedstock composition and downstream requirements, with parameters such as melt flow, recycled content, pellet specifications, and blending ratio considered during product development.
Key Product Characteristics
- Recycled polystyrene raw material for industrial plastic processing
- Cost-effective alternative or blending component to virgin GPPS
- Stable melt flow for extrusion and injection molding
- Good compatibility with virgin GPPS resin
- Low impurity content after controlled filtration and purification
- Controlled pellet size and moisture content
- Suitable for XPS, packaging, injection molding, and general PS applications
- Recycled content can support corporate sustainability and resource recovery objectives
- Available in grades tailored to different downstream processing requirements
Recycled PS Applications
Recycled PS pellets can serve as a secondary raw material for a range of PS-based manufacturing applications.
XPS Insulation Board Production
Recycled PS can be blended with virgin GPPS for XPS insulation board manufacturing when the material specifications and application requirements permit. The appropriate recycled content should be determined through formulation and production trials.
Injection-Molded Plastic Components
The material can be used for selected rigid plastic components where the required mechanical, appearance, and processing specifications are compatible with the recycled grade.
Packaging Materials
Recycled PS can be incorporated into selected industrial and protective packaging applications, including rigid packaging components and protective inserts.
Construction Plastic Components
The material can support production of auxiliary plastic components used in insulation systems, decorative profiles, and other construction-related applications.
Industrial Plastic Products
Recycled PS can be processed into general-purpose industrial components, protective packaging, storage products, and other applications where recycled material is technically suitable.
For projects requiring integrated processing capabilities, Green Earth also provides plastic plant engineering services for polymer production and processing projects.
Production Quality Control
Green Earth applies process control throughout recycled PS pellet production to maintain consistent material quality.
A. Waste Sorting & Feedstock Control
Incoming PS waste is inspected and sorted to control the composition of the feedstock. Non-PS materials, metals, paper, and other contaminants are removed before processing.
B. Extrusion & Devolatilization Control
Key extrusion parameters, including temperature, screw speed, pressure, and vacuum conditions, are monitored throughout production. Controlled devolatilization helps reduce residual blowing agents and volatile components, particularly when processing XPS and foam-derived feedstock.
C. Pellet Quality Inspection
Finished pellets are screened and tested for particle size, moisture content, melt flow characteristics, and visible contamination. Products can then be classified according to customer-specific performance requirements.
Why Choose Recycled PS Pellets from Green Earth?
- Blending raw material for XPS extruded insulation board production;
- Manufacturing of general rigid plastic injection molding parts such as appliance internal brackets and stationery;
- Processing of polystyrene foam packaging products such as foam cushions and packaging liners;
- Production of construction auxiliary plastic components such as insulation board auxiliary parts and decorative lines;
- Manufacturing of industrial plastic inner liners and protective packaging materials;
- Processing of ordinary daily-use plastic products such as plastic basins, storage boxes, and sanitary ware.
